System for waterproofing and installing floor and wall coverings with ready-to-use products in newly constructed damp environments

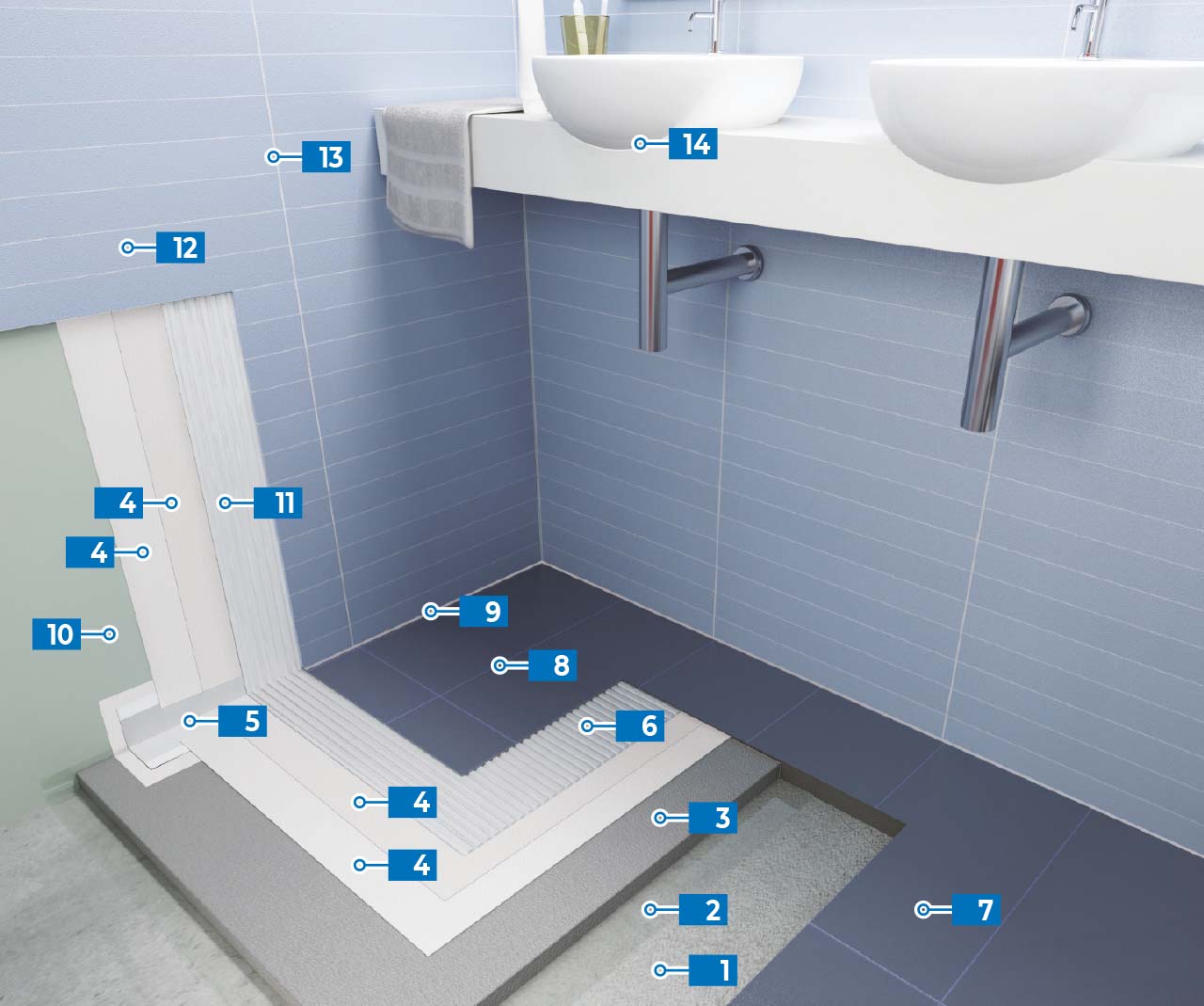

Application steps

Discover the application steps, the products used for this solution and other alternative products.

1

Concrete substrate

2

Uncoupling layer

3

Screed

TOPCEM PRONTO

Position a series of levelling guides, spread the mix, carefully compact the mix and float-finish the surface.

4

Ready-to-use waterproofer

MAPEGUM WPS

Apply two layers of product with a trowel, roller or brush to form a total thickness of at least 0.8 mm.

5

Rubber tape

MAPEBAND PE 120

Apply the elastic tape for fillet joints on the first layer of MAPEGUM WPS while still fresh.

6

Adhesive

KERAFLEX

Apply the adhesive on the substrate with a notched trowel suitable for the type and format of the tiles to ensure the back of the tiles is sufficiently wetted. Use the double-buttering method where specified by UNI 11493-1. While installing the tiles use levelling systems from the MapeLevel line to maintain the correct width for the grouts and to reduce lippage between adjacent tiles.

7

Ceramic tiles

8

Grout

KERAPOXY EASY DESIGN

Once the adhesive has set, carefully fill the grouts to their full depth using a rubber trowel without leaving gaps or steps. After filling the grouts with epoxy mortar clean the surface while the mortar is still wet fresh with a cellulose sponge dipped in water and a Scotch-Brite® pad where required. Carry out any final cleaning required using UltraCare Kerapoxy Cleaner.

9

Sealant

MAPESIL AC

Seal the perimeter and expansion joints after inserting Mapefoam to set the correct depth and then finish off the surface of the sealant with UltraCare Smooth Silicone.

10

Plasterboard

11

Adhesive

ULTRAMASTIC III

Apply the adhesive on the substrate with a notched trowel suitable for the type and format of the tiles to ensure the back of the tiles is sufficiently wetted. Use the double-buttering method where specified in UNI 11493-1. While installing the tiles use levelling systems from the MapeLevel line to maintain the correct width for the grouts and to reduce lippage between adjacent tiles.

12

Ceramic tiles

13

Grout

KERAPOXY EASY DESIGN

Once the adhesive has set, carefully fill the grouts to their full depth using a rubber trowel without leaving gaps or steps. After filling the grouts with epoxy mortar clean the surface while the mortar is still wet fresh with a cellulose sponge dipped in water and a Scotch-Brite® pad where required. Carry out any final cleaning required using UltraCare Kerapoxy Cleaner.

14

Sealant

MAPEFOAM

MAPESIL Z PLUS

Seal fillets between sanitary ware and ceramic tiles after inserting Mapefoam to set the correct depth. Finish off the surface of the sealant with UltraCare Smooth Silicone.

NOTE:

La scelta dell’adesivo per la posa del rivestimento varia in funzione del tipo e formato delle piastrelle, come indicato nella norma UNI 11493-1.
Sistema da posare usando i sistemi livellanti della linea MAPELEVEL.
A completamento del sistema per la pulizia, manutenzione e protezione delle superfici usare gli appositi prodotti della linea ULTRACARE.
