Installation of large thin porcelain tile panels for floors

Issues: Dated tile or stone; cost of removal

Solutions: Fast-setting rendering mortar to flatten walls; bond-promoting primer for existing tile; mortar designed to give maximum support to large gauged panel tile

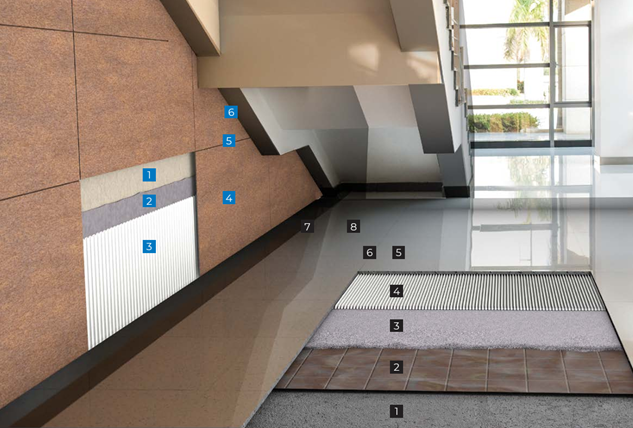

Application steps

Discover the application steps, the products used for this solution and other alternative products.

1

Wall: Existing wall (out of plumb)

Floor: Concrete

2

Wall: Planitop 330 Fast

Floor: Existing tile

3

Wall: MAPEI Ultralite S2

Floor: ECO Prim Grip

4

Wall: Large gauged panel tile

Floor: MAPEI Ultralite S2

5

Wall: MAPEI Flexcolor CQ (or Ultracolor Plus FA)

Floor: Large gauged panel tile

6

Wall: Mapesil T Plus

Floor: MAPEI Flexcolor CQ (or Ultracolor Plus FA)

Alternative products

Ultracolor Plus FA

7

Floor: Mapesil T Plus

8

Floor: UltraCare Penetrating Plus Stone, Tile & Grout Sealer
