Mapetherm Tile System S for installing small-format ceramic tiles on external thermal insulation systems

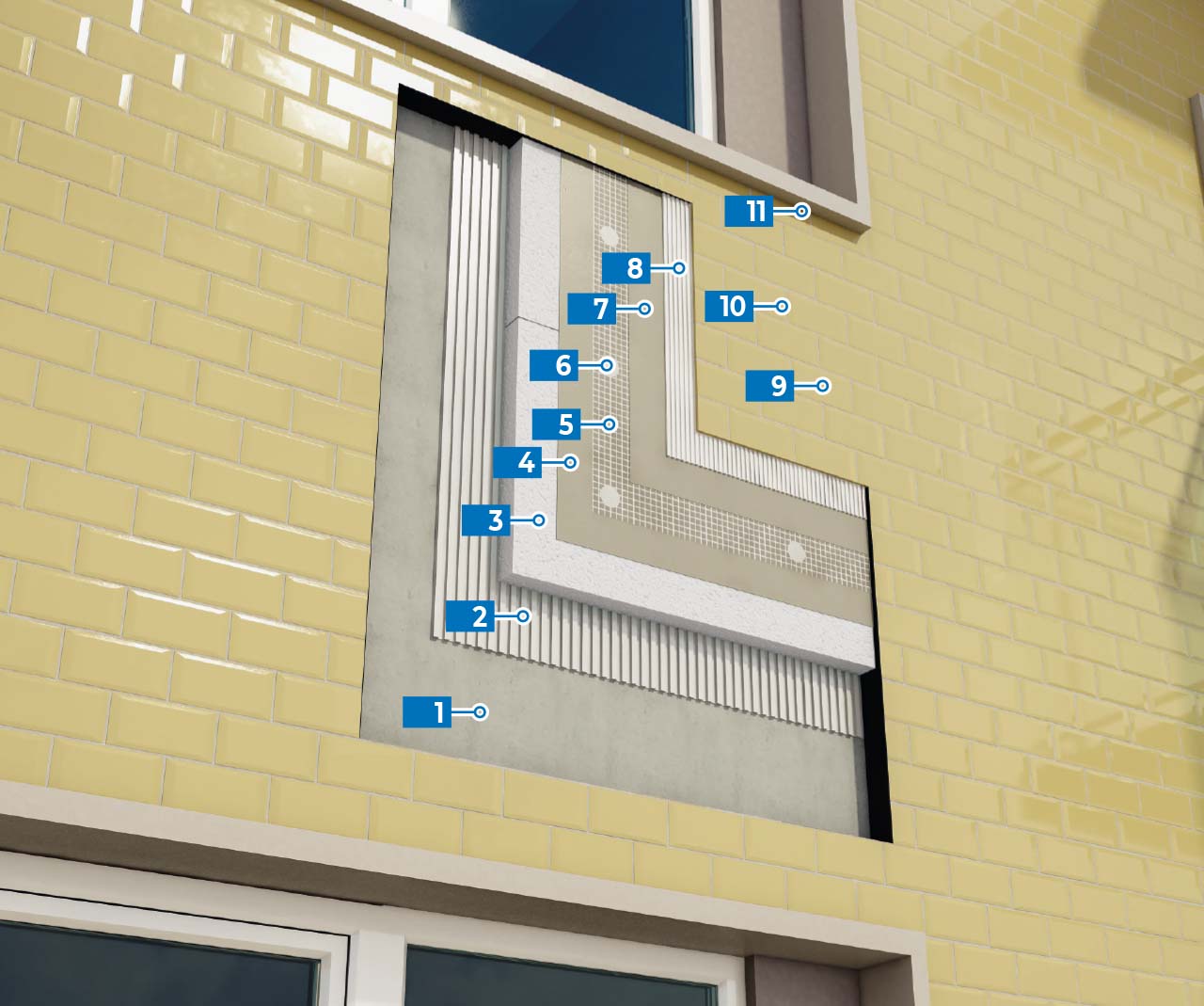

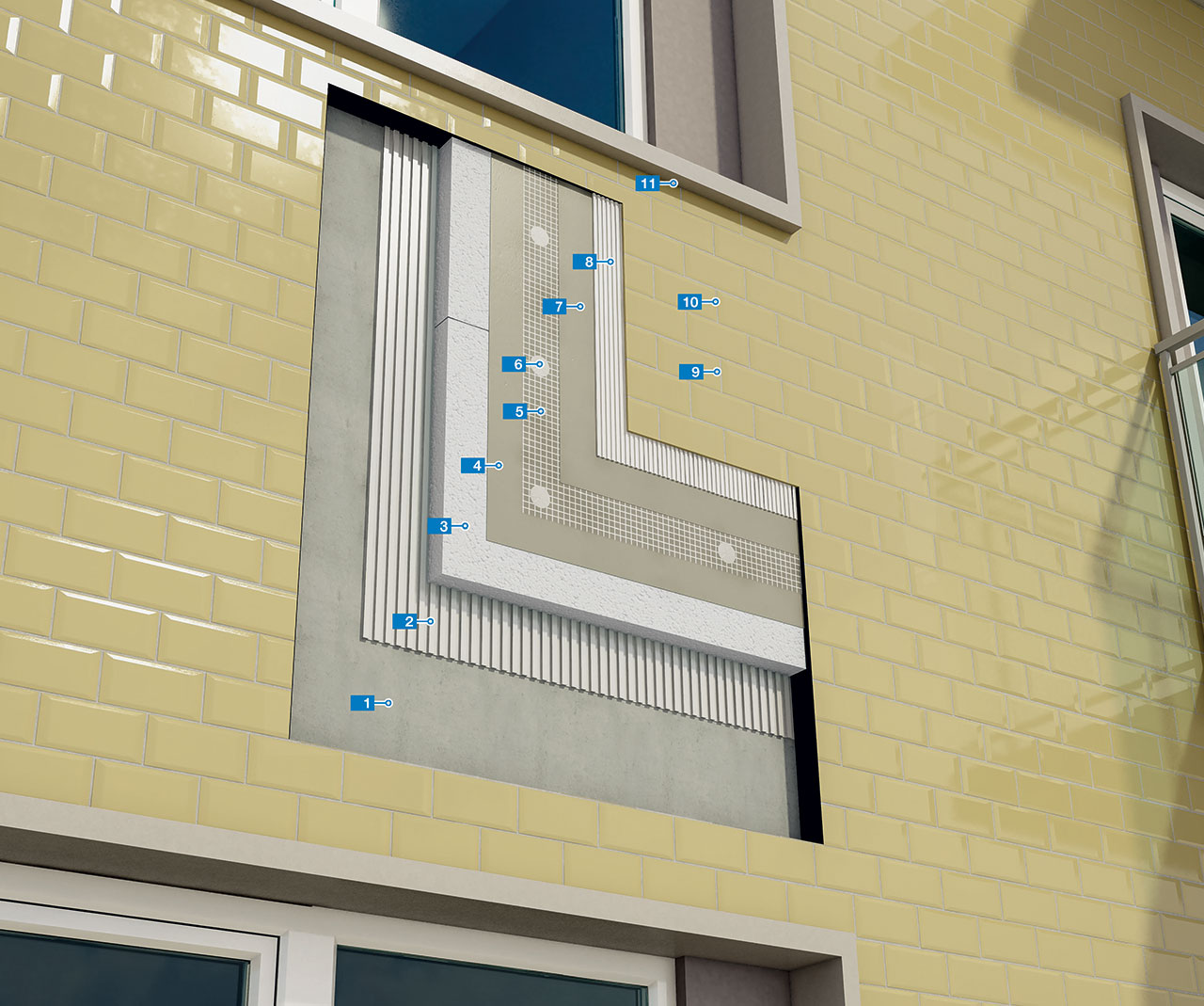

Application steps

Discover the application steps, the products used for this solution and other alternative products.

1

Render

Level off the perimeter masonry with the rendering mortar so that its flatness and verticality are according to specifications.

2

Adhesive for insulating panels

MAPETHERM AR1

Apply the adhesive using the double-buttering method (an even layer of adhesive on the back of the panels and on the substrate) with a suitable 10-12 mm square-notched trowel.

3

Thermo-insulating panel

4

Reinforced skimming mortar (1^st coat)

MAPETHERM AR1

Apply two successive layers of the product; the first layer should be 2-2.5 mm thick.

5

Glass fibre mesh

MAPETHERM NET

Place the glass fibre reinforcing mesh treated with special alkali-resistant primer on the first layer of skimming mortar while still fresh, overlapping adjacent pieces of mesh by 10 cm.

6

Fastener + washer
MAPETHERM TILE-EJOT SDF-S PLUS Ø 8 UB + MAPETHERM TILE-EJOT SBV-P 8/90 K

Fasten the panels to the substrate with the fasteners and special washers.
Insert the fasteners until the washers are sitting against the mesh.

7

Reinforced skimming mortar (2^nd coat)

MAPETHERM AR1

Apply the second layer of mortar to form a total thickness of 4-5 mm.

8

Adhesive for tiles

KERAFLEX MAXI S1 ZERO

Apply the adhesive with a notched trowel suitable for the type and format of the tiles to ensure the back of the tiles is sufficiently wetted. Use the double-buttering method where specified by UNI 11493-1. While installing the tiles use levelling systems from the MAPELEVEL line to maintain the correct width for the grouts and to reduce lippage between adjacent tiles.

9

Small format tile covering/klinker

10

Grouts

ULTRACOLOR PLUS

MAPEWALL MURATURA FINE

Once the adhesive has set, for porcelain or clinker tiles, carefully fill the grouts to their full depth using a rubber trowel without leaving gaps or steps. When the mix starts to lose its plasticity, clean off any excess product with a damp cellulose sponge. They may also be finished off while the product is partially hardened by going over the surface with a damp abrasive pad (such as a Scotch-Brite® pad). Remove any cementitious residues with ULTRACARE KERANET. Use a product such as MAPEWALL MURATURA FINE to grout strips of terracotta.

11

Elastic sealant

MAPEFOAM

MAPESIL LM

Seal the corners, edges and expansion joints after inserting MAPEFOAM to set the correct depth and then finish off the surface of the sealant with ULTRACARE SMOOTH SILICONE.

NOTES:

The choice of adhesive and covering varies according to type and format of tiles.
System to be applied by using MAPELEVEL levelling products.
For complete cleaning, maintenance and protection of the system use products from the ULTRACARE line.
